Pre-configured System

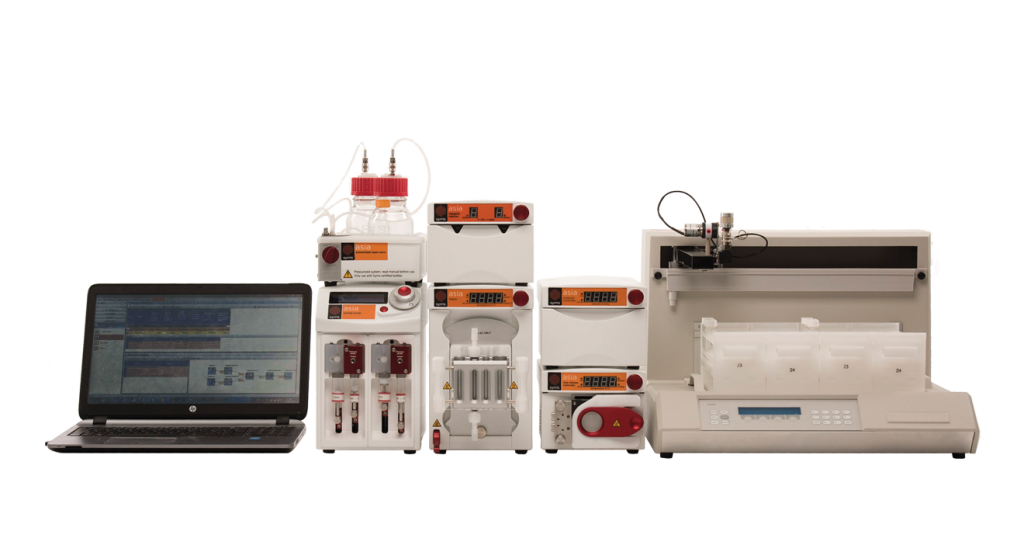

Asia Discovery Flow Chemistry System
Capable of running flow experiments that require limited quantities of starting material or expensive reagents.
With the Asia Discovery Flow Chemistry system, users can design a list of experiments, each requiring just hundreds of microliters of reagents, and run them in sequence. Using a range of modules, the system will automatically inject the required amount for each reaction and collect the resulting solution in a small vial.
The easy-to-use and affordable systems contain all essential flow system parts. All Asia systems are future-proof and can be seamlessly upgraded with additional features and modules as the user experience with flow chemistry grows and/or needs change.
All Asia chemistry systems are available as either regular or advanced configurations to suit different requirements and budgets, and all systems include the Asia Syringe Pump as a common module.
Specifications
|
Regular
|
Advanced
|
|
|---|---|---|
| Flow rate |
1 μL/min to 10 mL/min*
|
|
| Pressure range |
0 to 20 bar
|
0 to 20 bar**
|
| Temperature range |
-15 °C to +150 °C
|
-100 °C to +250 °C
|
| Pump channels |
2
|
4
|
| Chip reactors |
✔
|
✔
|
| Tube reactors |
✘
|
✔
|
| Column reactors |
✘
|
✔
|
| Product collection |
automated
|
automated
|
| Pressurized inputs |
✔
|
✔
|
| Injection valves |
2
|
4
|
| Auto injection valves |
✘
|
2
|
| Automation |
✔
|
✔
|
*Depending on syringe size
**10 bar when using fluoropolymer tube reactors
Modules
-
Pumping
-
Asia Pressurized Input Store
The Asia Pressurized Input Store is designed for use with the Asia Syringe Pump. It holds up to 4 x […]
View module details -
Asia Syringe Pump
View module details
-
-
Reagent Injection
-
Asia Reagent Injector
The Asia Reagent Injector includes 2 extremely chemically resistant injection valves with sample loops (5 mL by default, 0.1 mL, […]
View module details -
Asia Automated Reagent Injector
The Asia Automated Reagent Injector allows automated aspiration and loading of multiple reagents into injection loops under inert conditions; and […]
View module details
-
-
Flow Reactor
-
Asia Chip Climate Controller
The Asia Chip Climate Controller enables a range of glass microreactors to be cooled or heated from -15ºC to +150ºC […]
View module details -
Asia Heater
The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in […]
View module details -
Asia Cryo Controller
This compact module requires only mains power to rapidly cool a selection of fluoropolymer or stainless steel tube reactors to […]
View module details
-
-
Post Reaction Modules
-
Asia Pressure Controller
The Asia Pressure Controller is designed to easily set the back pressure of the system from 1 bar to 20 […]
View module details -
Asia FLLEX (Flow Liquid Liquid EXtraction)
The Asia FLLEX (Flow Liquid Liquid EXtraction) module is the flow chemistry equivalent of a separatory funnel. Operating continuously, this […]
View module details
-
-
Sample Collection
-
Asia Automated Collector
The Asia Automated Collectors (Mini and Regular) enable fully automated collection of multiple reactions. The Asia Automated Collectors allow the […]
View module details
-
-
Automation
-
Asia Automator
The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320, […]
View module details -
Asia Manager PC Software
Asia Manager Software is an easy-to-use and intuitive PC software for total walk-away control of your Asia System. The software […]
View module details
-
-
Optional modules
-
Asia Syringe Pump
View module details -
Asia Automated Reagent Injector
The Asia Automated Reagent Injector allows automated aspiration and loading of multiple reagents into injection loops under inert conditions; and […]
View module details -
Asia Heater
The Asia Heater provides heating for all types of Asia reactors. With its range of adapters that are interchangeable in […]
View module details -
Asia Cryo Controller
This compact module requires only mains power to rapidly cool a selection of fluoropolymer or stainless steel tube reactors to […]
View module details -
Asia FLLEX (Flow Liquid Liquid EXtraction)
The Asia FLLEX (Flow Liquid Liquid EXtraction) module is the flow chemistry equivalent of a separatory funnel. Operating continuously, this […]
View module details -
Asia Automated Collector
The Asia Automated Collectors (Mini and Regular) enable fully automated collection of multiple reactions. The Asia Automated Collectors allow the […]
View module details -
Asia Automator
The Asia Automator enables automated flow chemistry experiments to be controlled by the Asia Manager PC Software (e.g. 230, 320, […]
View module details -
Asia Manager PC Software
Asia Manager Software is an easy-to-use and intuitive PC software for total walk-away control of your Asia System. The software […]
View module details
-
